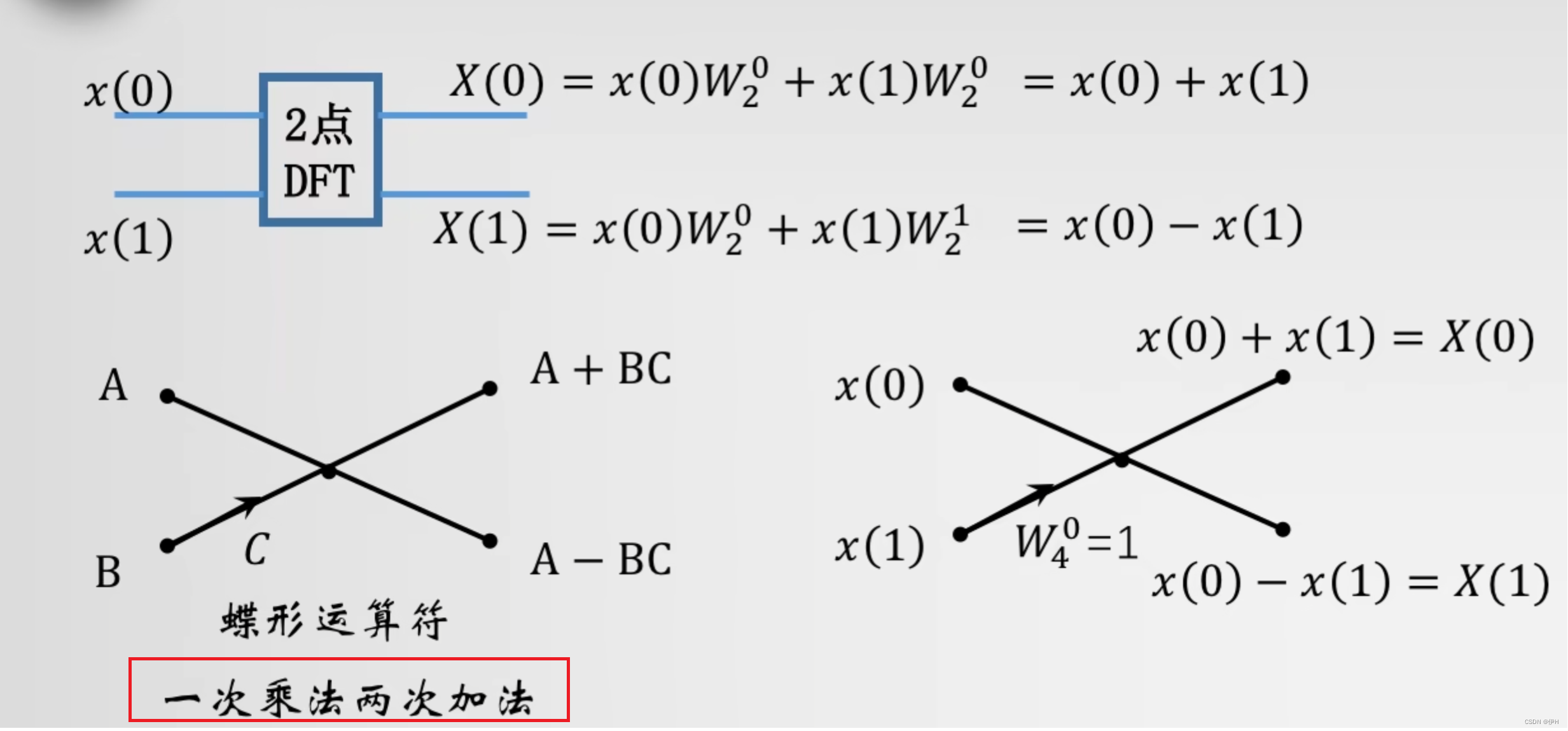

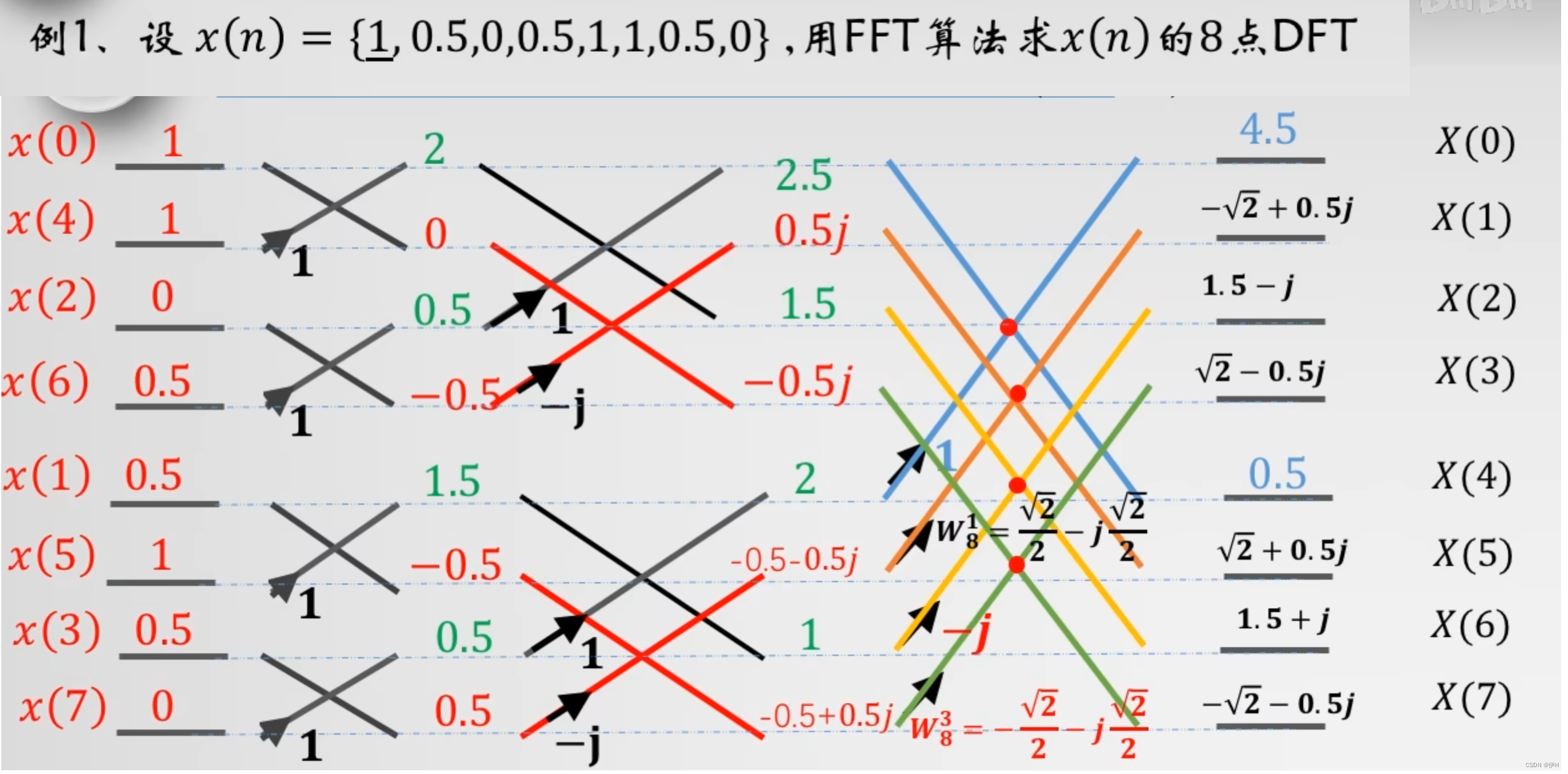

正fft算法 ​

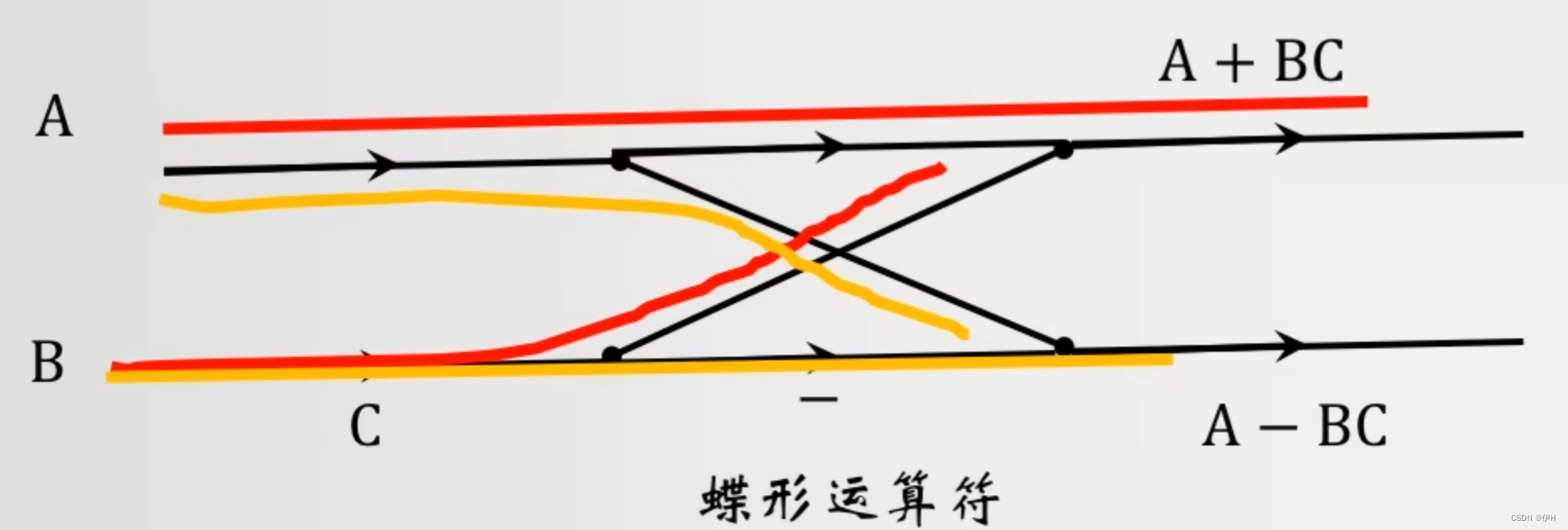

······ 复数乘法

javascript
(a+bi)×(c+di) = ac + adi + bci + bdi^2
进一步化简，考虑到i^2 = -1，得到：
ac + adi + bci - bd = (ac - bd) + (ad + bc)i

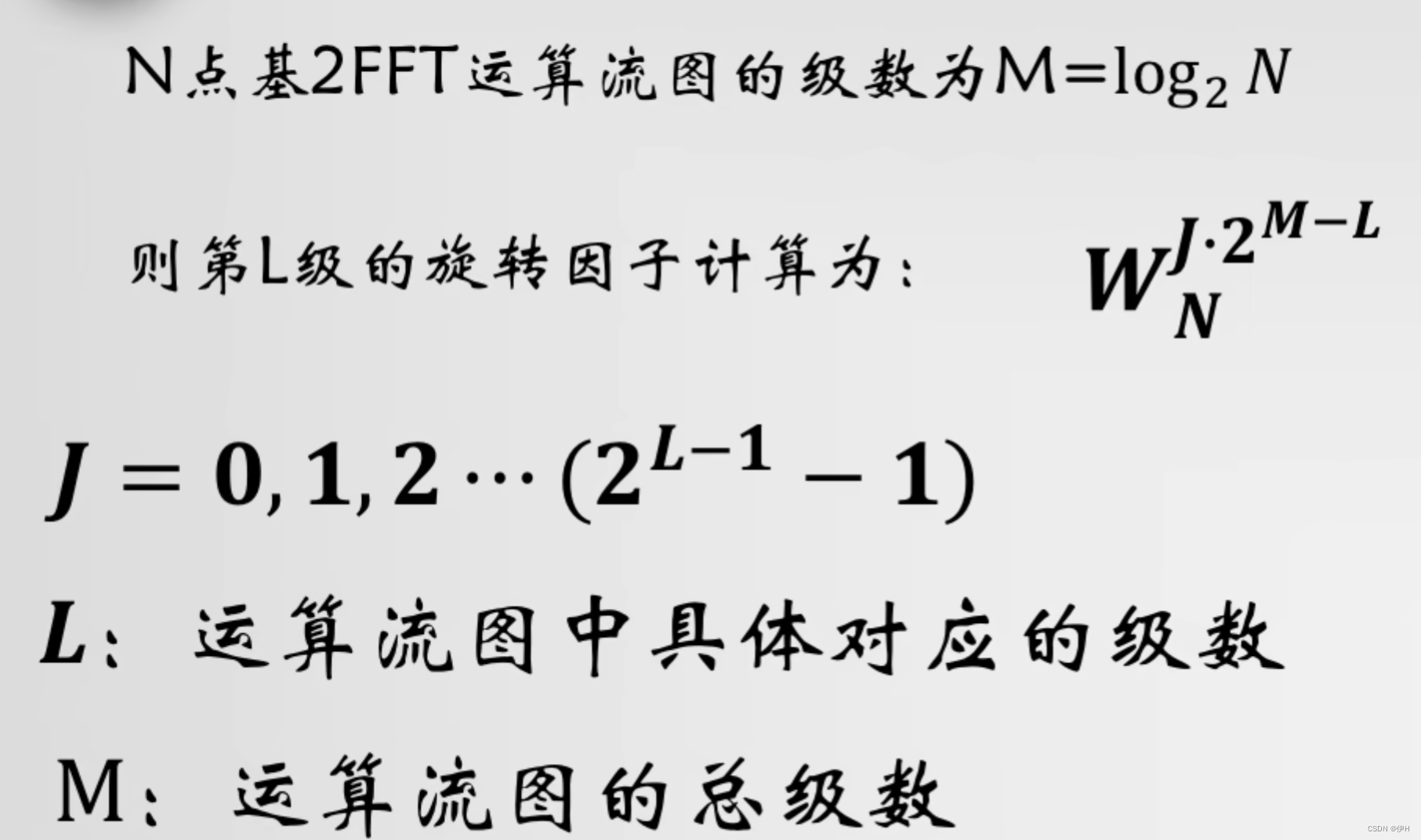

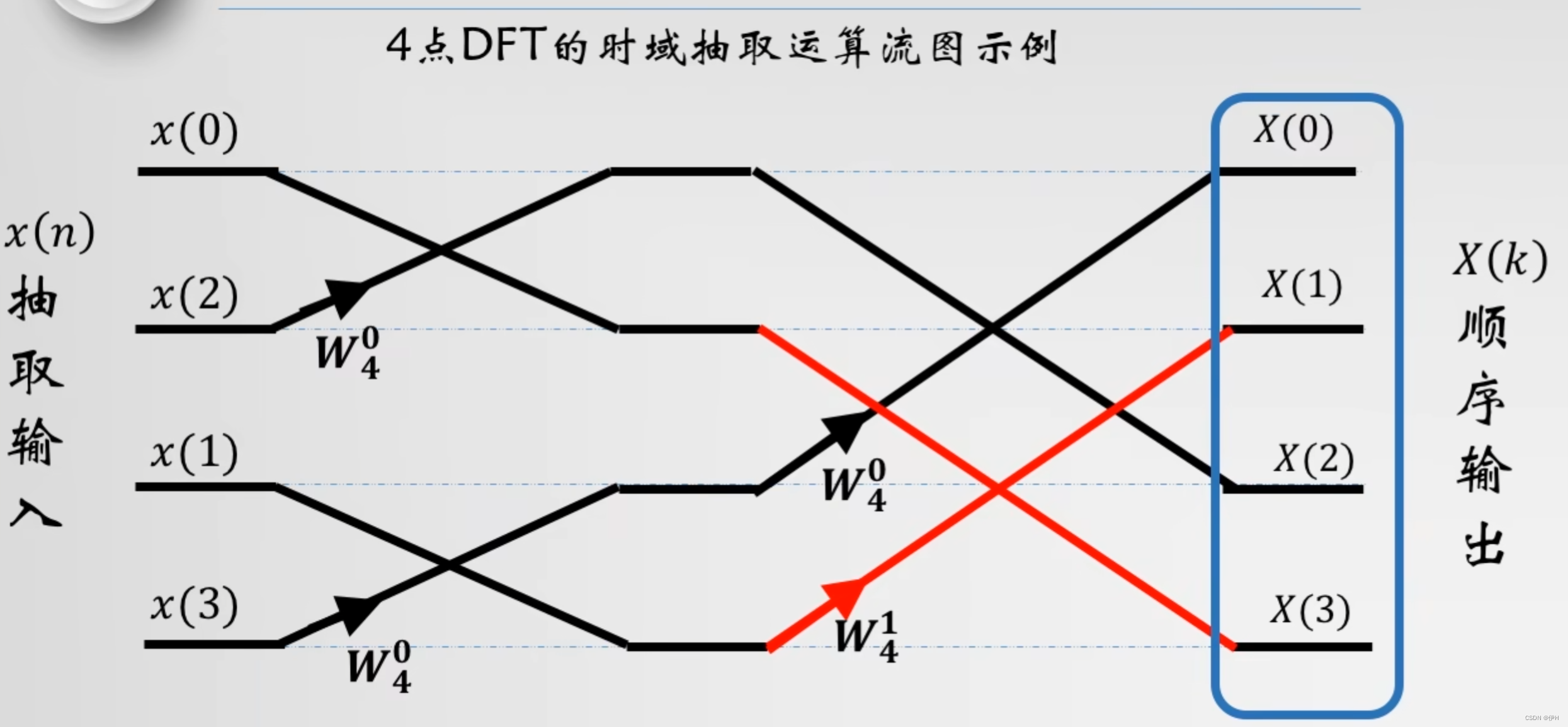

取W的原理 ​

javascript
/**

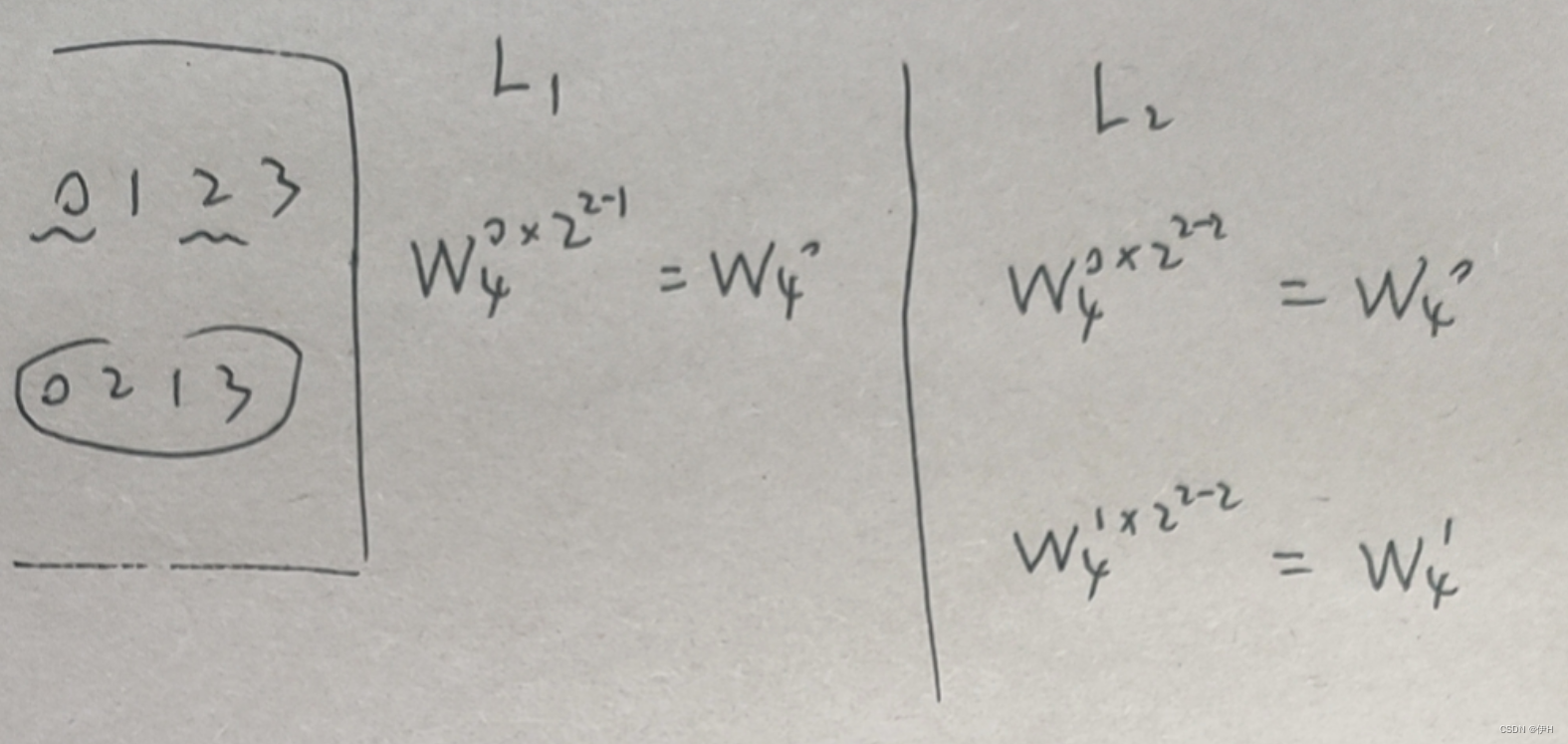

 * w的取值计算
 * W_N_k 中，k 的取值是： J * 2^(M - L)【M 是log2*(8) = 3、L 是从1开始的第几轮、J 是每块大小中从0开始循环的值】
 */


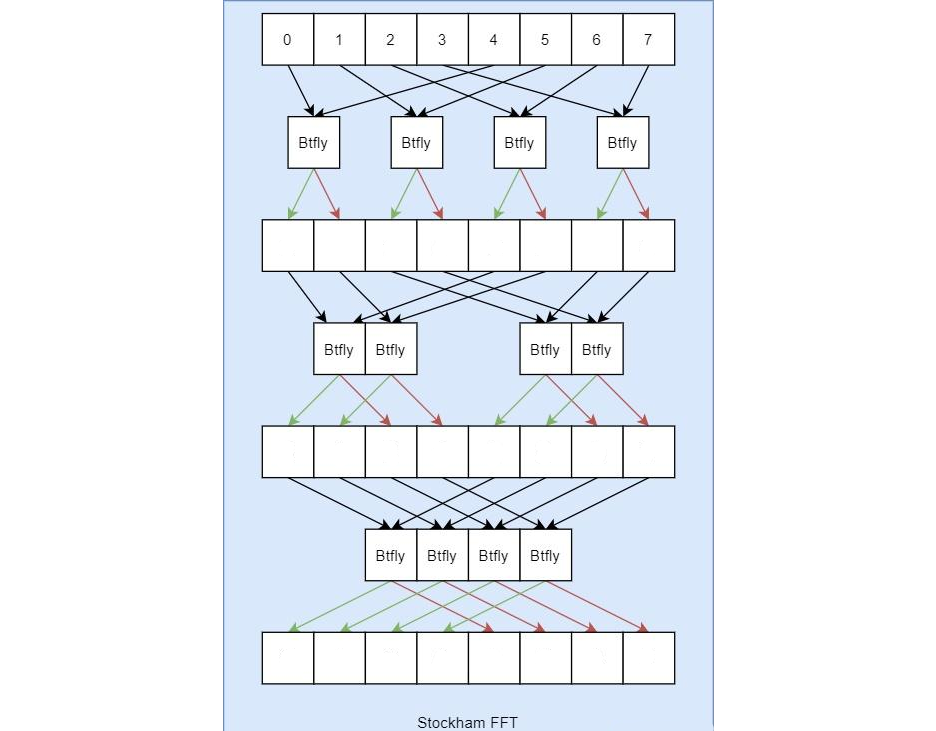

Stockham FFT ​

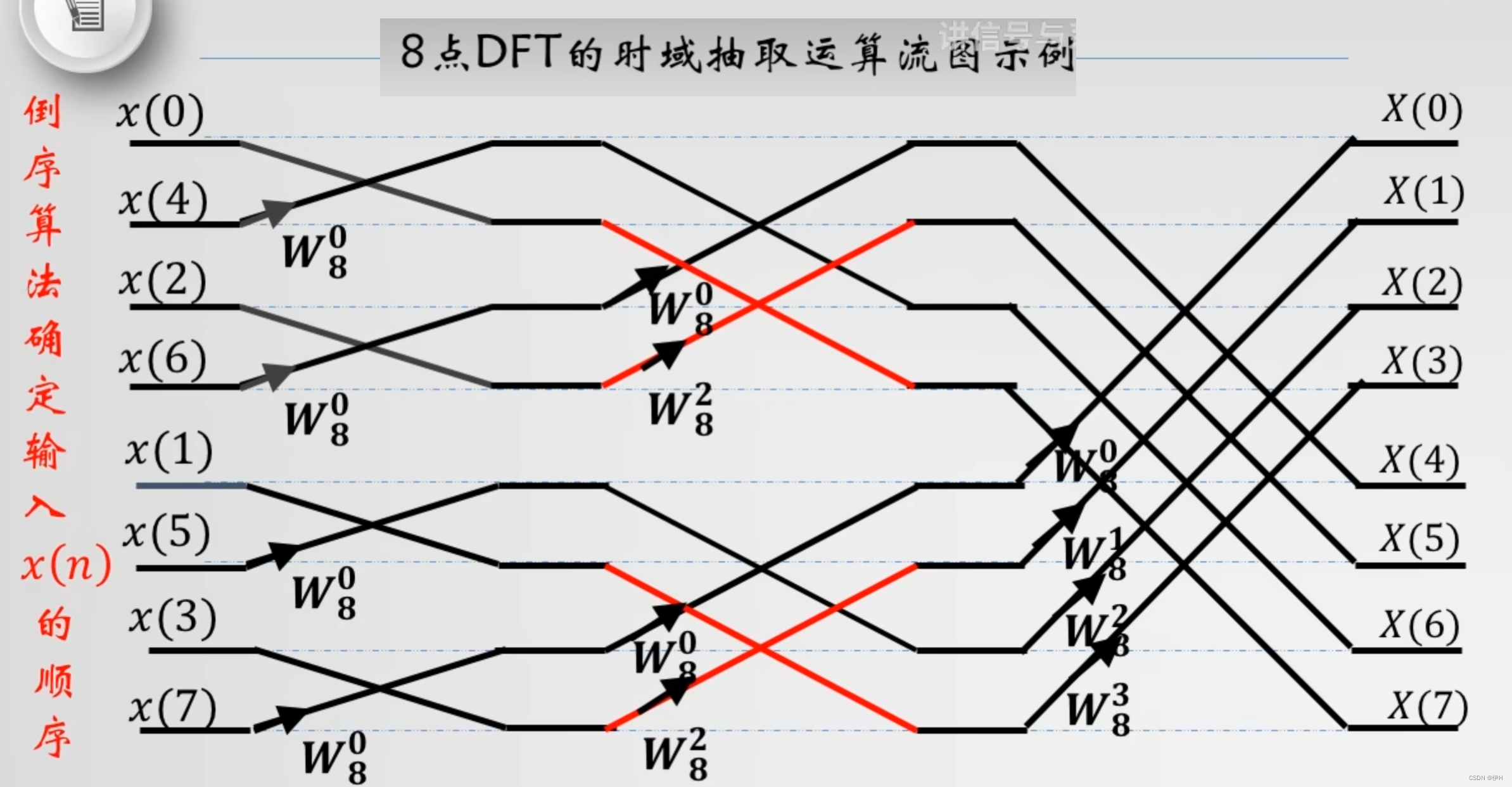

以8*8为例子 image

javascript
/**
  W_8_0 = 1 + 0i
  W_8_1 = 0.7071 - 0.7071i
  W_8_2 = 0 - i
  W_8_3 = -0.7071 - 0.7071i
*/

/**
  是每一次的输出，都是下一次的输入。
*/

/**
  第一轮 ☆☆☆☆☆☆☆☆
  输入：[0, 1, 2, 3, 4, 5, 6, 7]

  W_8_0 = 1

  [
    0 + (4 * 1 + 4 * 0i),  => 4
    0 - (4 * 1 + 4 * 0i),  => -4
    1 + (5 * 1 + 5 * 0i),  => 6
    1 - (5 * 1 + 5 * 0i),  => -4
    2 + (6 * 1 + 6 * 0i),  => 8
    2 - (6 * 1 + 6 * 0i),  => -4
    3 + (7 * 1 + 7 * 0i),  => 10
    3 - (7 * 1 + 7 * 0i),  => -4
  ]

  输出：[4, -4, 6, -4, 8, -4, 10, -4]

  ---------------------------------------------------------

  第二轮 ☆☆☆☆☆☆☆☆
  输入：[4, -4, 6, -4, 8, -4, 10, -4]

  W_8_0 = 1 + 0i
  W_8_2 = 0 - i

  [
    4 + (8 * 1 + 8 * 0i),      => 12
    -4 + (-4 * 0 + -4 * (-i))   => -4 + 4i
    4 - (8 * 1 + 8 * 0i),      => -4
    -4 - (-4 * 0 + -4 * (-i))   => -4 - 4i
    6 + (10 * 1 + 10 * 0i)      => 16
    -4 + (-4 * 0 + -4 * (-i))   => -4 + 4i
    6 - (10 * 1 + 10 * 0i)      => -4
    -4 - (-4 * 0 + -4 * (-i))   => -4 - 4i
  ]

  输出：[12, -4 + 4i, -4, -4 - 4i, 16, -4 + 4i, -4 -4 - 4i]

  ---------------------------------------------------------

  第三轮 ☆☆☆☆☆☆☆☆
  输入：[12, -4 + 4i, -4, -4 - 4i, 16, -4 + 4i, -4, -4 - 4i]

  W_8_0 = 1 + 0i
  W_8_1 = 0.7071 - 0.7071i
  W_8_2 = 0 - i
  W_8_3 = -0.7071 - 0.7071i

  [
  0、  12 + (16 * 1 + 16 * 0i)
      = 28 + 0i

  1、  -4 + 4i + ((-4 + 4i) * 0.7071 + (-4 + 4i) * -0.7071i)
      = -4 + 4i -2.8284 + 2.8284i + 2.8284i + 2.8284
      = -4 + 9.6568i

  2、  -4 + ((-4) * 0 + (-4) * -i)
      = -4 + 4i

  3、  -4 - 4i + ((-4 - 4i) * -0.7071 + (-4 - 4i) * - 0.7071i)
      = -4 - 4i + 2.8284 + 2.8284i + 2.8284i - 2.8284
      = -4 + 1.6568i

  4、  12 - (16 * 1 + 16 * 0i)
      = -4 + 0i

  5、 -4 + 4i - ((-4 + 4i) * 0.7071 + (-4 + 4i) * -0.7071i)
      = -4 + 4i + 2.8284 - 2.8284i -2.8284i - 2.8284
      = -4 - 1.6568i

  6、 -4 - ((-4) * 0 + (-4) * -i)
      = -4 - 4i

  7、 -4 - 4i - ((-4 - 4i) * -0.7071 + (-4 - 4i) * - 0.7071i)
      = -4 - 4i - (2.8284 + 2.8284i + 2.8284i - 2.8284)
      = -4 - 4i - 5.6568i
      = -4 - 9.6568i
  ]

  输出：[
    28 + 0i,
    -4 + 9.6568i,
    -4 + 4i,
    -4 + 1.6568i,
    -4 + 0i,
    -4 - 1.6568i,
    -4 - 4i,
    -4 - 9.6568i
  ]

  至此，和下面的 python 运算结果一致。
*/
javascript
// http://www.fun-ai.org.cn/scratch/python/
import numpy as np
x = np.array([0, 1, 2, 3, 4, 5, 6, 7], dtype=np.complex128)  # 显式使用复数类型
theoretical_result = np.fft.fft(x)
print("Theoretical FFT:", theoretical_result)

// Theoretical FFT: [
//   28.+0.j,
//   -4.+9.65685425j,
//   -4.+4.j,
//   -4.+1.65685425j,
//   -4.+0.j,
//   -4.-1.65685425j,
//   -4.-4.j,
//   -4.-9.65685425j
//   ]

输出的下标 ​

每一轮中，循环的次数都是4（即n*k=4）。
输出下标的公式是：

  • (x - u) * 2 + u

  • x 是第几个蝶形变换，x ∈ 0，1，2，3。

  • u 是 x mod 2^m ， m ∈ 0，1，2

  • 这个算法为什么这样，看 https://zhuanlan.zhihu.com/p/208511211 【详尽的快速傅里叶变换推导】

  • 第一轮

    • m=0、n=4、k=1
      • n=4 是因为 blockNum=4
      • k=1 是因为 blockSize=2，所以 k=blockSize/2=1

  • 第二轮

    • m=1、n=2、k=2
      • n=2 是因为 blockNum=2
      • k=2 是因为 blockSize=4，所以 k=blockSize/2=2

  • 第三轮

    • m=2、n=1、k=4
      • n=1 是因为 blockNum=1
      • k=4 是因为 blockSize=8，所以 k=blockSize/2=4
javascript
var tempArray = OutputData
var logRes = log2(8) // 即 3

for (var m = 0; m < logRes; m ++) {

  var indexIn = 0
  var step = 2^m // 即：1，2，4。这个是间隔步长。
  var blockSize = 2^(m+1) // 即：2，4，8。
  var blockNum = 8 / blockSize // 即：4，2，1。一共有多少块需要循环。
  var kFor = blockSize / 2 // 即：1，2，4。每个块需要循环从次数。

  for (var n = 0; n < blockNum; n ++) {

    for (var k = 0; k < kFor; k ++) {

      var inputData1 = OutputData[indexIn]
      var inputData2 = OutputData[indexIn + 4]

      var outputIndex1 = 2 * (indexIn - (indexIn mod 2^m)) + (indexIn mod 2^m)
      var outputIndex2 = outputIndex1 + step

      var indexW = k * 2^(logRes - (m + 1))
      var w = dataW[indexW]

      var p1 = inputData1
      var p2 = 复数乘法(inputData2, w)

      tempArray[outputIndex1] = p1 + p2
      tempArray[outputIndex2] = p1 - p2

      indexIn ++
    }

  }

  OutputData = tempArray
}
javascript
function complexMultiply(a, b) {
  return {
    x: a.x * b.x - a.y * b.y, // 实部
    y: a.x * b.y + a.y * b.x // 虚部
  }
}

function complexAdd(a, b) {
  return {
    x: a.x + b.x, // 实部
    y: a.y + b.y // 虚部
  }
}

function complexSubtraction(a, b) {
  return {
    x: a.x - b.x, // 实部
    y: a.y - b.y // 虚部
  }
}

let OutputData = [
  { x: 0, y: 0 },
  { x: 1, y: 0 },
  { x: 2, y: 0 },
  { x: 3, y: 0 },
  { x: 4, y: 0 },
  { x: 5, y: 0 },
  { x: 6, y: 0 },
  { x: 7, y: 0 },
]

let tempArray = new Array(8)

const dataW = [
  { x: 1, y: 0 },
  { x: 0.7071, y: -0.7071 },
  { x: 0, y: -1 },
  { x: -0.7071, y: -0.7071 },
]

const logRes = 3

for (var m = 0; m < logRes; m++) {

  var indexIn = 0
  var step = Math.pow(2, m)
  var blockSize = Math.pow(2, m + 1)
  var blockNum = 8 / blockSize
  var kFor = blockSize / 2

  for (var n = 0; n < blockNum; n++) {
    for (var k = 0; k < kFor; k++) {
      var inputData1 = OutputData[indexIn]
      var inputData2 = OutputData[indexIn + 4]

      var outputIndex1 = 2 * (indexIn - (indexIn % Math.pow(2, m))) + (indexIn % Math.pow(2, m))
      var outputIndex2 = outputIndex1 + step

      var indexW = k * Math.pow(2, 3 - (m + 1))
      var w = dataW[indexW]

      var p1 = inputData1
      var p2 = complexMultiply(inputData2, w)

      tempArray[outputIndex1] = complexAdd(p1, p2)
      tempArray[outputIndex2] = complexSubtraction(p1, p2)

      indexIn++
    }
  }
  OutputData = tempArray
  tempArray = []
}

console.log(OutputData)
// [
//   {
//       "x": 28,
//       "y": 0
//   },
//   {
//       "x": -4,
//       "y": 9.6568
//   },
//   {
//       "x": -4,
//       "y": 4
//   },
//   {
//       "x": -4,
//       "y": 1.6567999999999996
//   },
//   {
//       "x": -4,
//       "y": 0
//   },
//   {
//       "x": -4,
//       "y": -1.6567999999999996
//   },
//   {
//       "x": -4,
//       "y": -4
//   },
//   {
//       "x": -4,
//       "y": -9.6568
//   }
// ]
javascript
let list = []

function complexMultiply(a, b) {
  return {
    x: a.x * b.x - a.y * b.y, // 实部
    y: a.x * b.y + a.y * b.x // 虚部
  }
}

function complexAdd(a, b) {
  return {
    x: a.x + b.x, // 实部
    y: a.y + b.y // 虚部
  }
}

function complexSubtraction(a, b) {
  return {
    x: a.x - b.x, // 实部
    y: a.y - b.y // 虚部
  }
}
list = [
  18.981624193185777,
  21.72065757030428,
  16.447474387356934,
  22.993932387133217,
  18.106364793791336,
  13.05106293427047,
  15.893983477237896,
  19.42478727038987,
  17.166599707321495,
  9.866400314345183,
  7.59787385910128,
  14.567197303499817,
  14.70930597077771,
  7.896936476775536,
  12.900951861540339,
  7.4406024047751345,
  18.981624193185777,
  21.72065757030428,
  16.447474387356934,
  22.993932387133217,
  18.106364793791336,
  13.05106293427047,
  15.893983477237896,
  19.42478727038987,
  17.166599707321495,
  9.866400314345183,
  7.59787385910128,
  14.567197303499817,
  14.70930597077771,
  7.896936476775536,
  12.900951861540339,
  7.4406024047751345
]
let size = list.length
let OutputData = []
let logRes = Math.log2(size)
let tempArray = new Array(size)
let dataW = []
let half = size / 2

for (let i = 0; i < size; i++) {
  OutputData.push({
    x: list[i],
    y: 0
  })

  let angle = (2 * Math.PI * i) / size
  let rePositiveInverse = Math.cos(angle)
  let imPositiveInverse = -Math.sin(angle)
  dataW.push({
    x: rePositiveInverse,
    y: imPositiveInverse
  })
}


for (var m = 0; m < logRes; m++) {

  var indexIn = 0
  var step = 1 << m
  var blockSize = 1 << (m + 1)
  var blockNum = size / blockSize
  var kFor = blockSize / 2

  for (var n = 0; n < blockNum; n++) {
    for (var k = 0; k < kFor; k++) {
      var inputData1 = OutputData[indexIn]
      var inputData2 = OutputData[indexIn + half]

      var outputIndex1 = 2 * (indexIn - (indexIn % Math.pow(2, m))) + (indexIn % Math.pow(2, m))
      var outputIndex2 = outputIndex1 + step

      var indexW = k * (1 << (logRes - m - 1))
      var w = dataW[indexW]
      var p1 = inputData1
      var p2 = complexMultiply(inputData2, w)

      tempArray[outputIndex1] = complexAdd(p1, p2)
      tempArray[outputIndex2] = complexSubtraction(p1, p2)

      indexIn++
    }
  }
  OutputData = []
  for(let i =0 ;i<size;i++){
    OutputData.push({...tempArray[i]})
  }
  tempArray = []
}

console.log(OutputData)

逆fft算法 ​

javascript
// 逆fft需要修改
// 1、旋转因子
// 2、归一化，即for (let i = 0; i < size; i++) { OutputData[i].x /= size; OutputData[i].y /= size; }
let list = []

function complexMultiply(a, b) {
  return {
    x: a.x * b.x - a.y * b.y, // 实部
    y: a.x * b.y + a.y * b.x // 虚部
  }
}

function complexAdd(a, b) {
  return {
    x: a.x + b.x, // 实部
    y: a.y + b.y // 虚部
  }
}

function complexSubtraction(a, b) {
  return {
    x: a.x - b.x, // 实部
    y: a.y - b.y // 虚部
  }
}
list = [
  18.981624193185777,
  21.72065757030428,
  16.447474387356934,
  22.993932387133217,
  18.106364793791336,
  13.05106293427047,
  15.893983477237896,
  19.42478727038987,
  17.166599707321495,
  9.866400314345183,
  7.59787385910128,
  14.567197303499817,
  14.70930597077771,
  7.896936476775536,
  12.900951861540339,
  7.4406024047751345,
  18.981624193185777,
  21.72065757030428,
  16.447474387356934,
  22.993932387133217,
  18.106364793791336,
  13.05106293427047,
  15.893983477237896,
  19.42478727038987,
  17.166599707321495,
  9.866400314345183,
  7.59787385910128,
  14.567197303499817,
  14.70930597077771,
  7.896936476775536,
  12.900951861540339,
  7.4406024047751345
]
let size = list.length
let OutputData = []
let logRes = Math.log2(size)
let tempArray = new Array(size)
let dataW = []
let half = size / 2

for (let i = 0; i < size; i++) {
  OutputData.push({
    x: list[i],
    y: 0
  })

  let angle = (2 * Math.PI * i) / size
  let rePositiveInverse = Math.cos(angle)
  let imPositiveInverse = Math.sin(angle)
  dataW.push({
    x: rePositiveInverse,
    y: imPositiveInverse
  })
}

for (var m = 0; m < logRes; m++) {

  var indexIn = 0
  var step = 1 << m
  var blockSize = 1 << (m + 1)
  var blockNum = size / blockSize
  var kFor = blockSize / 2

  for (var n = 0; n < blockNum; n++) {
    for (var k = 0; k < kFor; k++) {
      var inputData1 = OutputData[indexIn]
      var inputData2 = OutputData[indexIn + half]

      var outputIndex1 = 2 * (indexIn - (indexIn % Math.pow(2, m))) + (indexIn % Math.pow(2, m))
      var outputIndex2 = outputIndex1 + step

      var indexW = k * (1 << (logRes - m - 1))
      var w = dataW[indexW]
      var p1 = inputData1
      var p2 = complexMultiply(inputData2, w)

      tempArray[outputIndex1] = complexAdd(p1, p2)
      tempArray[outputIndex2] = complexSubtraction(p1, p2)

      indexIn++
    }
  }
  OutputData = []
  for(let i =0 ;i<size;i++){
    OutputData.push({...tempArray[i]})
  }
  tempArray = []
}

// 在最终输出前加入归一化操作
for (let i = 0; i < size; i++) {
  OutputData[i].x /= size;
  OutputData[i].y /= size; // 如果只需要实部结果，可以保留 x，将 y 置为零
}
console.log(OutputData)
